Product Description
(Delivery lead time 4-6 weeks)

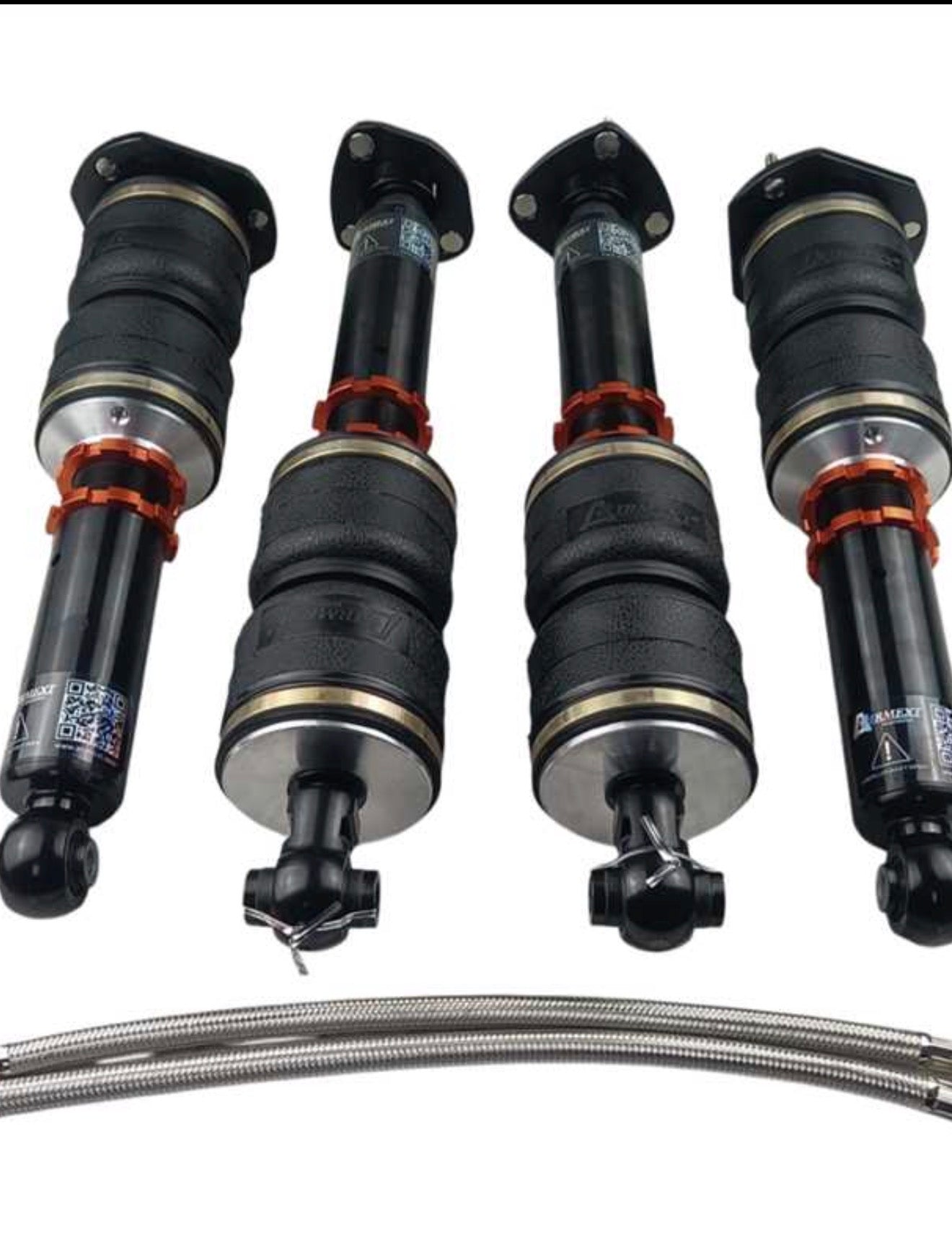

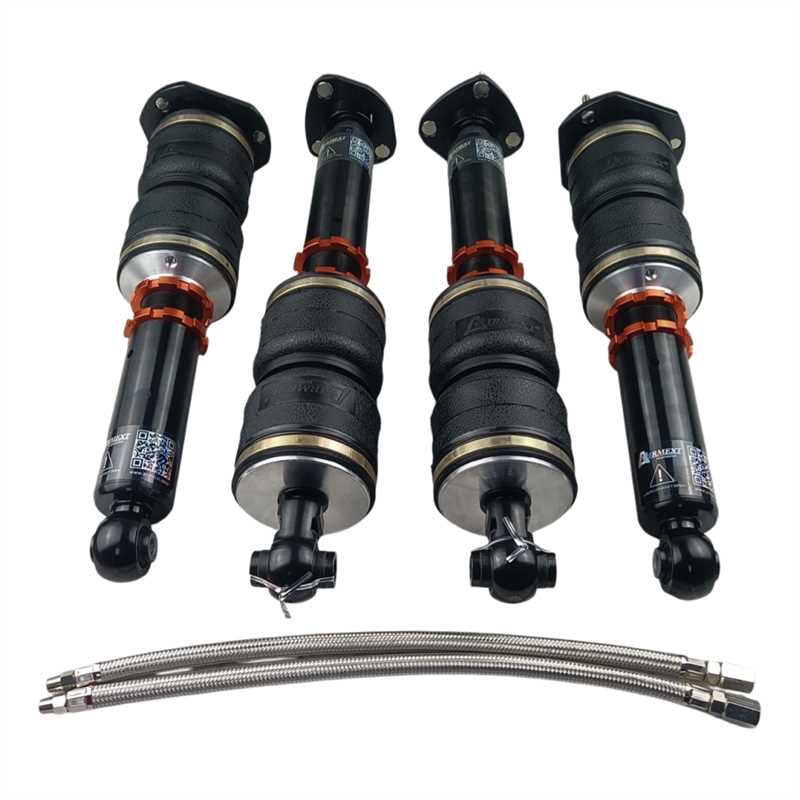

1. Air Strut Pack Includes:
4 * 4LOW CONCEPTS AIRRIDE Coilover shock absorbers (2 front, 2 rear)
4 * 4LOW CONCEPTS AIRRIDE Rubber air springs (2 front, 2 rear)
2 * Spacers + bolts
4 * 1/8NPT air fittings
4 * Dampers
2 * Spanners (wrenches)
2 * Sway bar links (optional if needed)
2 * Pillow ball camber plates (optional, contact online service for pricing)
2. Management System & Control Features
Premium Acrylic Setup: The management features an upgraded high-finish acrylic panel that delivers a sleek, custom look and offers significantly better wireless signal reception than standard alloy aluminum covers.
High-Capacity 5-Gallon Air Tank: Includes a premium 5-gallon air tank to ensure plenty of volume for fast, reliable adjustments.
Pre-Set Air Tank Pressure Logic: Easily customize compressor settings. When tank pressure drops below your minimum set value, the air pump kicks on; once it hits your maximum set setpoint, it automatically shuts off.
Backlight Adjustable Manifold Valve: Choose between RED, GREEN, BLUE, and PURPLE backlighting.
Wired Controller with Changeable Backlight: Select from RED, GREEN, or BLUE.
V3 APP Interface: Switch between 3 unique background skins to match your style.
Plug-and-Play Design: Exceptionally clean and easy to connect.
Built-In Pressure Switch: Integrated directly inside the manifold solenoid valve for a cleaner, clutter-free trunk layout.
Maximum Stability: Features fully updated software with all bugs resolved for super stable performance.
Premium Material Quality: Built with upgraded silicon chips and heavy-duty valves.
Precision Control: 5-level preset memory with more accurate memory values and precise micro-adjustments.
Extreme Working Temperature Range: Built to perform from -40^\circ\text{C} to 125^\circ\text{C} (-40^\circ\text{F} to 257^\circ\text{F}).
3. Air Management & Movement Logic
Independent 4-Corner Control: Full independent rise and drop control for each wheel.
Simultaneous Axle Control:
Front 2 wheels rise/drop together.
Rear 2 wheels rise/drop together.
All 4 wheels rise/drop simultaneously.
Micro-Adjustments: Four-wheel slight adjustment tuning for the perfect stance.
Multiple Controller Options: Includes a sleek wired controller; wireless controller options are available.
Smartphone Integration: Dedicated mobile app control available for both iOS and Android.
Multi-Language Interface: 12 languages supported (English, Spanish, French, German, etc.).
Security Features: Custom changeable password protection and automatic security checking/adjusting.
One-Touch Function: Long press the up/down button to ride all the way to the top or bottom of the stroke.
Digital LED Pressure Display (PSI):
Display precision: Up to 1 PSI
Memory accuracy: Up to 3 PSI
Maximum Lift/Drop: Accommodates a massive total car body stroke of 5.9 inches.
4. Hardware Features:
32-Level Adjustable Damping
Allows you the ability to dial in your air suspension even further. Set damping softer (counterclockwise) or stiffer (clockwise) by simply inserting the included damping knob and turning it either way.
Threaded & Adjustable Shock Mounts
Fine-tune your ride height at any PSI setting. Just like a standard coilover kit, the adjustable lower mounts allow you to set the perfect ride height at basically any PSI you are comfortable driving at.
125mm Drop (Front & Rear)
Front and rear air struts with 125mm of stroke lift and lower your car body on demand. Works perfectly with the integrated G5 air management for 3-level memorized height adjustments.
High-Pressure Double Bellows Progressive Rate Spring
Engineered and designed to match your specific vehicle. Air pressure directly corresponds with how stiff or soft your car rides (Higher PSI = stiffer ride / Lower PSI = softer ride).
High-Performance 4LOW CONCEPTS AIRRIDE Shock Absorbers
Every air strut kit comes with the same premium quality shocks standard in our coilover systems, internally valved specifically to accommodate changes in air pressure.
12-Month Limited Warranty
Covers manufacturer defects for 12 months from the original date of purchase.
CONFIGURATION LIST:
1. 4LOW CONCEPTS AIRRIDE Wired Controller * (1 piece)
2. Premium Acrylic Setup Manifold Solenoid Valve * (1 piece)
3. 5-Gallon Air Tank * (1 piece)
4. Premium Wiring Harness + Air Fittings & Connectors * (1 set)
5. Instruction Manual * (1 piece)
